IP65 Waterproof Fiber Optic Splice Box for FTTH PLC Splitter and SC Connectors Pole Mounted
FTTH Splitter distribution box is used for the distribution connection of cable and fiber optic communication devices. It leads out the optic signal from drop cable to pigtails by splicing in the box(also for surplus cables and adapters). It can be used for protective connection of cable and layout pigtails, and fiber optic terminations of optic access network. It’s applicable for wall or pole mounted outside the building when cables already come to building in the FTTH project.
The splitter distribution box can realize the functions of splitting, splicing, distribution and butterfly-like cable dispatch after cables to the floor in FTTH project. The bottom part is for incoming cable fixing,storage,splicing, and parking. The upper layer is for cable distribution with adapter panels, and fiber storage.
Features
- Industry standard user interface,be made of high impact plastic.
- Canuse1x4 & 1x8 & 1x16 micro module PLC splitter.
- Anti-UV,Ultra violet resistant and rainfall resistant.
- Up to 16 FTTH drop cables.
- Wall mount or pole mount
- 2inlet ports,16outlet ports.
- Small size, light weight, pleasing in appearance
- Suitable for SC, FC, E2000, 4 fibers
- Indoor or outdoor use
Application
- Widely used in FTTH access network.
- Telecommunication networks.
- CATV Networks.
- Data communications networks.
- Local Area Networks.
Specifications
| Model | FDB-0216A |
| Dimension | 360×260×90 mm |
| Cable inputs diameter | 2×φ15mm |
| Cable outputs diameter | 16×φ5mm |
| Max capacity | 16 FO |
| Adapter quantity | 16 SC |
| Plc splitter | Micro PLC Splitter 1x8 or 1x16 |
| Application | Wall-mount or pole-mount |
| Material | Pc |
| Color | White |
Package information
| Model | FDB0216A |
| Carton quantity | 10pcs |
| Carton size | 56*36*62cm |
| Carton weight | 15.6kg |
More clear pictures

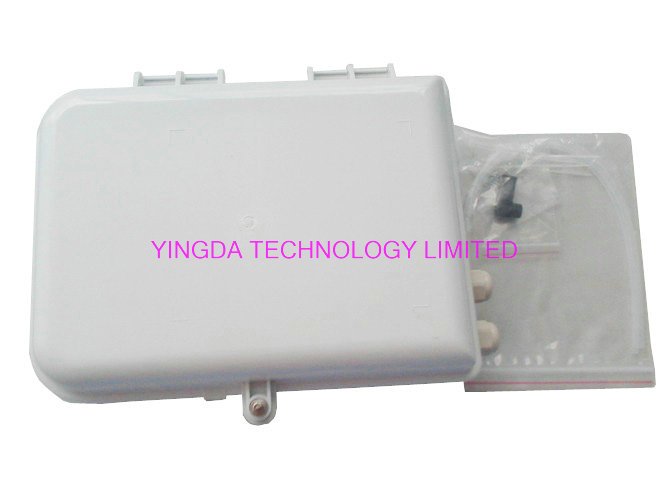

fdb0216 terminal box is made of PC, high strength, white color

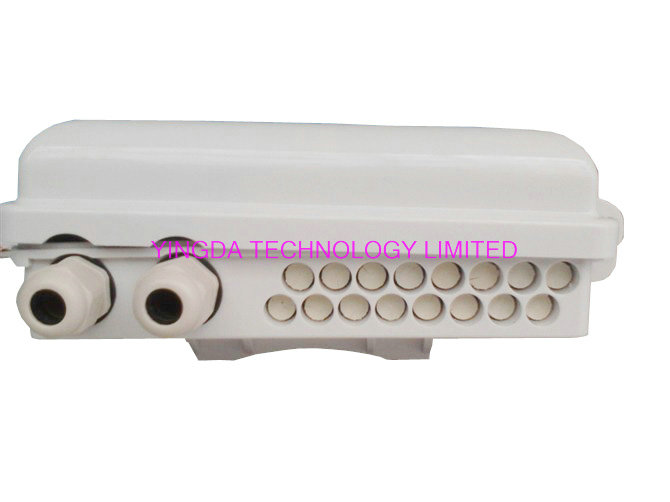

cable ports: 2in, 16out
cable diameter: 6-10mm
accesssory: buffer tube, plastic key, protection sleeve,nylon tie
all inside metal parts stainless steel, rubbber seal whole inside for outdoor harsh environmental use.
adapter panel can use adpaters: SC or LC duplex 16pc
the splice tray can splice maximum 24 fibers, it can be rorate 90 angel for better use
there is special fixtion position for PLC splitter steel tube.
max can use 1pcs plc splitter 1x16 mini module 1.5meter 0.9mm LSZH G657A
can print customer logo or part no. on the steel tube with labels.
the splice tray can take off.
FAQ
Q1. Can I have a sample order?
A: Yes, welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 1-3 days, mass production time needs 5-7day for order quantity more than 1000pcs
Q3. Do you have any MOQ limit ?
A: low MOQ, and for most of the products, there is no MOQ
Q4. How do you ship the goods and how long does it take to arrive?
A: if small order, by DHL, UPS, FedEx or TNT by air which usually takes 2-3 working days to arrive. If by airline shipping, it takes about 5-7days, if by sea shipping, it should take around 15-30days based on different country and continent, all of them are accepted.
Q5. How to proceed an order ?
A: Firstly, let us know your requirements or application in details.
Secondly, We quote according to your requirements or our suggestions.
Thirdly, customer confirms the samples and places deposit for formal order.
Fourthly, We arrange the production.
