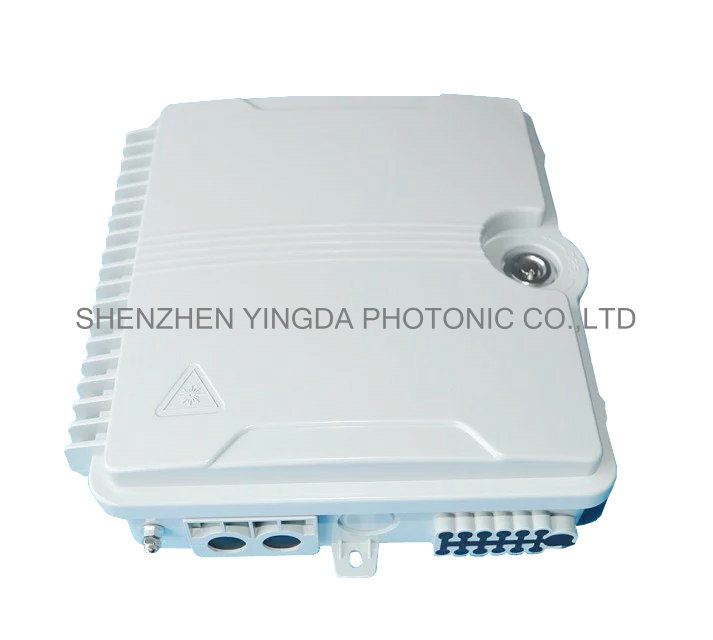

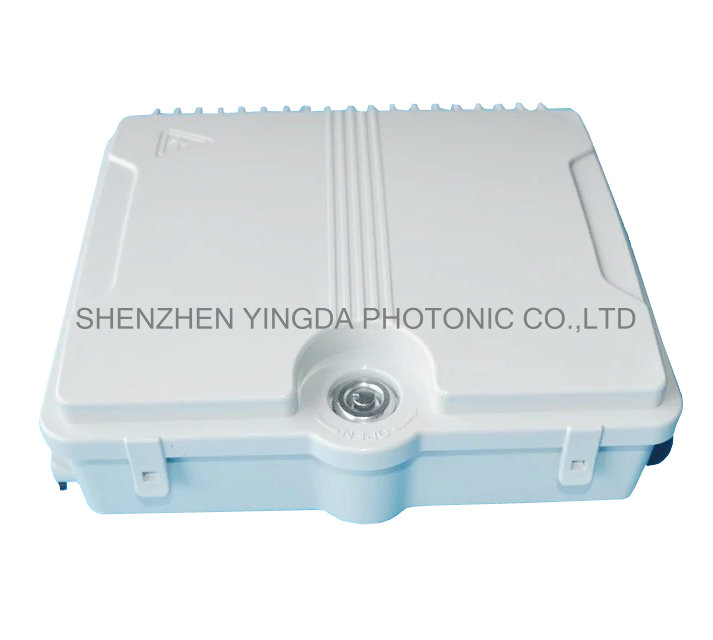

High Strength GPON 12 Fiber Optic Termination Box , Fiber Optic Splitter Box with SC/APC Adapter

High Strength Plastic GPON 12 Fibers Fiber Optic Distribution Box, 12 Ports Fiber Optic Splitter Box with SC/APC Adapter Panel

FDB0212C fiber optic splitter box is widely used as a termination point for feeder cable to connect with drop cable. The fiber splicing ,splitting, distribution can be done in this box,and meanwhile it provides solid protection and menagemant for FTTX network.Can be used indoor or outdoor.

Feature

• ABS material used ensures the body strong and light.
• Water-proof design for outdoor uses.
• Easy installations: Ready for wall mount – installation kits provided.
• Adapter slots used – No screws and tools needed for installing adapters.
• Ready for splitters: designed space for adding splitters.
• Space saving! Double-layer design for easier installation and maintenances:
• Lower layer for splitters and over length fiber storage.
• Upper layer for splicing, cross-connecting and fiber distribution.
• Cable fixing units provided for fixing the outdoor optical cable.
• Protection Level: IP65.
• Accommodates both cable glands as well as tie-wraps
• Lock provided for extra security

Structure explanation

Configuration

Package information

Environmental reguirement
Working temprature : -40℃~+85℃
Relative humidity : ≤85% (+30℃)
Atmospheric pressure : 70Kpa~106Kpa

Main technical datasheet
Insertion loss : ≤0.2db
UPC return loss : ≥50db
APC return loss : ≥60db
Life of insection and extraction : >1000 times

Thunder-proo technical datasheet
The grounding device is isolated with the cabinet, isloation resistance is less than 2*104MΩ/500V(DC);

IR≥2*104MΩ/500V(DC)
The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no puncture, no flashover; U≥3000V
