IP68 16Ports Fiber Cable Joint Box , Black PP Fiber Optic Enclosures Outdoor

Product Categories
YINGDA TECHNOLOGY LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

IP68 16Ports Fiber Cable Joint Box , Black PP Fiber Optic Enclosures Outdoor

Brand Name : YINGDA

Model Number : FDB0216F

Certification : ISO

Place of Origin : china

MOQ : 500pcs, first order accept small order

Price : negotiable

Payment Terms : T/T, Western Union, MoneyGram, L/C

Supply Ability : 60k per month

Delivery Time : 7working days

Packaging Details : 1pc/box, 10pcs/carton box

material : high strength engineering PP

Capacity : 48fibers maximum

Adapter : SC/APC

PLC splitter : 1:16 or 2x 1:8 mini module

color : black

dimension : 385X245X130mm

connector insertion loss : <0.3dB

OME or sample : ok

cable port : 2inputs, 16outputs

sealing method : mechanical sealing

features : unique cable ports,muliti-functional,speical structure and closing method

appliation : wall mount or pole mount

Contact Now

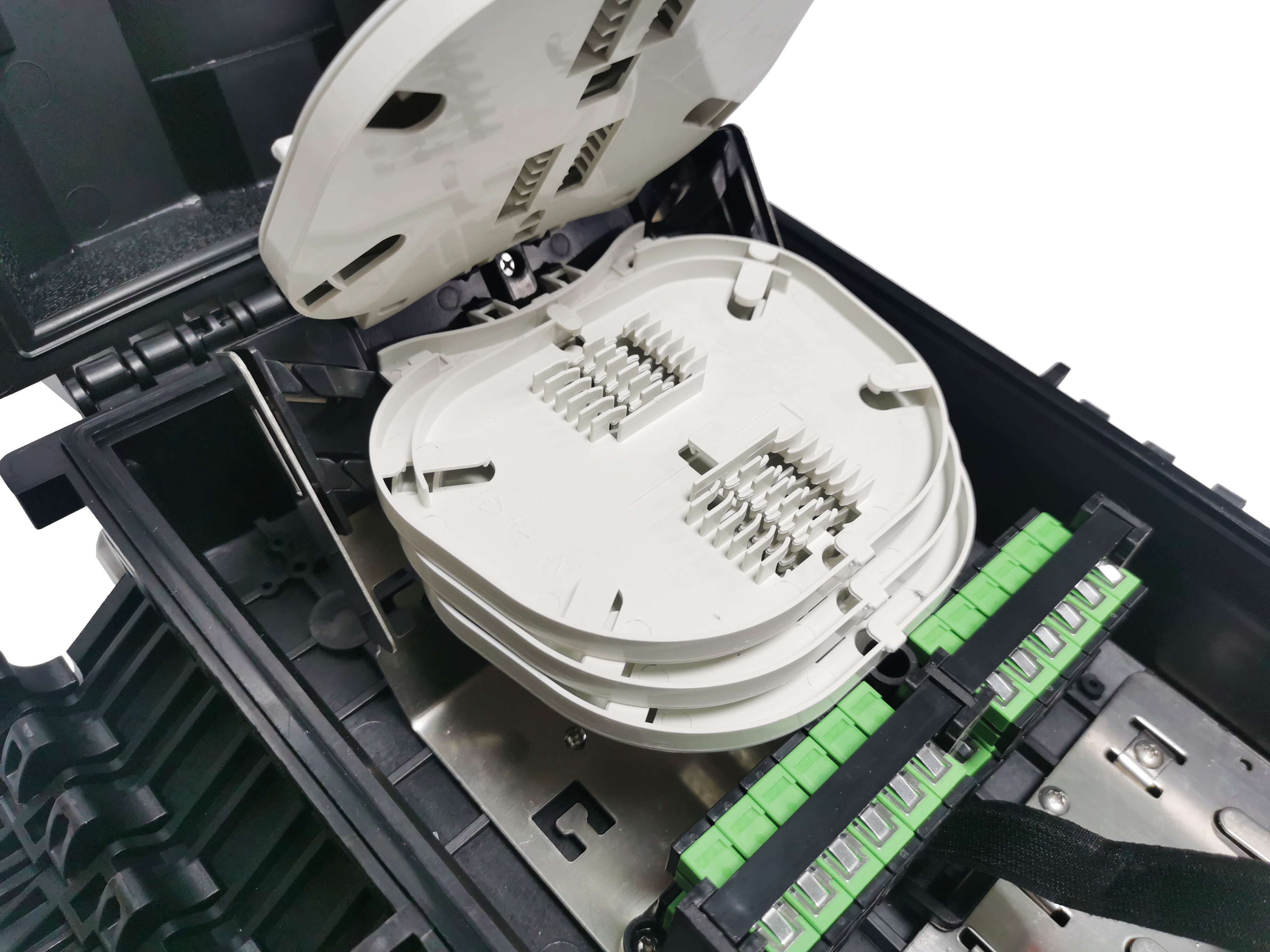

IP68 16Ports FTTH Drop Cable Fiber Optic Splice Closure , Black PP Outdoor Splitter Joint Closure

Black IP68 FTTH Pole Mount Splice Splitter Closure, 3M BPEO For Fibre Distribution Point 16 Drops or 24 Drops

FTTH drop cable type fiber optics plice & splitter closure features with ruggedness, which is tested under harsh confitions and stand up to even the most severe conditions of moisture, vibration and extreme temperatures. Humanized design help user get better experience.

Features

  • Dis-mountable adapter panel
  • Support mid-span termination
  • Easy operation and installation
  • Rotatable and dis-mountable splice tray for easy splicing
  • Sealing Structure: mechanical sealing
  • Adaptor: 16 pcs of SC simplex
  • Maximum Splicing Capacity: 48 fibers (4 trays, 12 fibers/tray)
  • Applicable Splitter: 1pc of 1*16 PLC Splitter or 2pcs of 1*8 PLC Splitters
  • Sealing: IP68
  • Impact Test: IK10
  • Pull Force: 100N
  • Midspan Entry: yes
  • Storage (Tube/Micro Cable): yes
  • Color: Black
  • Material:PP

Application

  1. Wall mounting, pole mounting installation
  2. 2*3.0mm indoor FTTH drop cable and outdoor figure 8 FTTH drop cable

Specification

Model FDB-0216F
Sealing Structure mechanical sealing
Color black
Adaptor 24pcs of SC (16 pcs of SC for option)
Maximum Splicing Capacity 48 fibers (4 trays, 12 fibers/tray)
Applicable Splitter 1pc of 1*16 PLC Splitter or 2pcs of 1*8 PLC Splitters
No. of Cable Ports 1 oval cable inlet port, 24 drop cable outlet ports
Sealing IP68
Impact Test IK10
Pull Force 100N
Mid-span Entry yes
Storage (Tube/Micro Cable) yes
Dimension 385*245*130mm
Weight 4kg

Accessory: nylon tie, cable clamps, expansion mounting screws, insolation tape, rubber gronments, number mark, buffer tube, spiral tube, key, sleeves, alcohol bag, sealing kits, branch, wrench, etc.

IP68 16Ports Fiber Cable Joint Box , Black PP Fiber Optic Enclosures Outdoor

Product Details

IP68 16Ports Fiber Cable Joint Box , Black PP Fiber Optic Enclosures OutdoorIP68 16Ports Fiber Cable Joint Box , Black PP Fiber Optic Enclosures OutdoorIP68 16Ports Fiber Cable Joint Box , Black PP Fiber Optic Enclosures Outdoor

Optional Accessories

IP68 16Ports Fiber Cable Joint Box , Black PP Fiber Optic Enclosures Outdoor
