FTTH Indoor ABS 1 Core SC Adapter Invisible Fiber Optic Box Wall Outlet
Invisible optical fibre is a specially designed system of virtually invisible fibers dedicated for Multi Dwelling Unit and Living Unit applications. Pre connected invisible fiber optic cable terminal box combines fiber optic rosette indoor wall outlet with external diameter of 0.9mm fiber optic invisible cable by a reasonable rosette design and 2 pieces of standard SC connectors. You can mounted the box with double layer 3M adhesive or mounting screws or desktop directly, which makes it the best choice for indoor wiring.
And the G.657.B3 or G657A fibre enables worry free bending around the many tight corners typically found inside buildings and rooms. The fibre can be glued to all kinds of walls with the use of specially designed micro clips.
Features
- High quality engineering ABS material, white color;
- Can store maximum 35 meters of invisible optical fiber;
- The winding coil on the bottom ensure to rotate and adjust the length of the optical fiber outside of the box according to the actual situation;
- The curvature radius of the optical fiber is greater than 30mm at any position;
- Wall mounted installation with screws;
- Applicable for home or Work area (FTTR) fiber optic interface;
- Applicable to SC, ST and other common models of adapter;
- Using engineering ABS brand new raw materials;
- With dust-proof device to prevent dust from entering, IP54 protection grade.
Application
- FTTH project & FTTx Deployments
- Optical LAN & WAN & CATV
- Telecommunication Network
- Local Area Network
Technical Specification
| Model | FTB001S-XH |

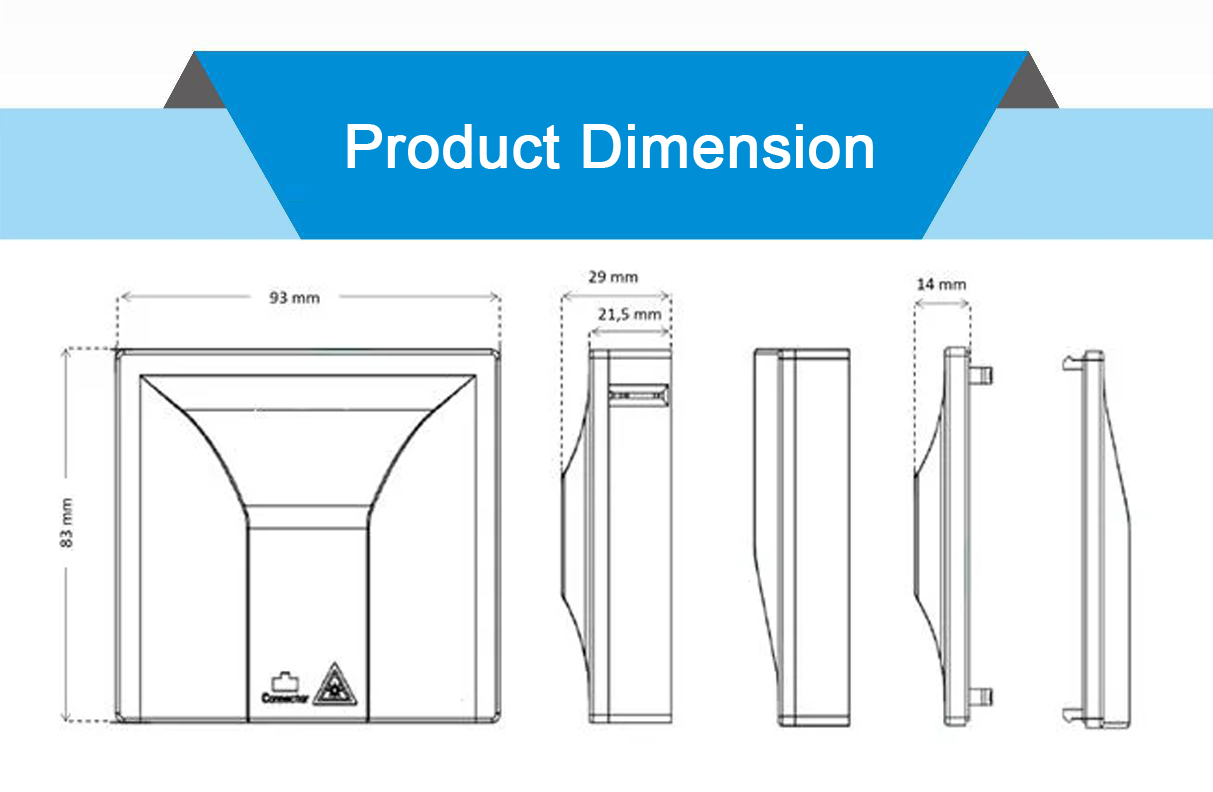

| Dimension(L*W*H) | 93*83*30mm |
| Max capacity | 1 Core |
| Max qty of adapter | 1 piece SC |
| Material | ABS |
| Color | White |
| Applicable cable | Invisible clear fiber optic cable |
| Cable diameter | 900um tight buffer |
| Cable sheath | Nylon |
| Cable length | 10, 15, 20, 25, 30, 35mtrs |
| Net weight | 67g |
| Working temperature | -25℃ to +60℃ |
| Pack information |
| Quantity per carton | 200pcs |
| Carton size | 54*25*34.5cm |
| Weight per carton | 14.5kg |

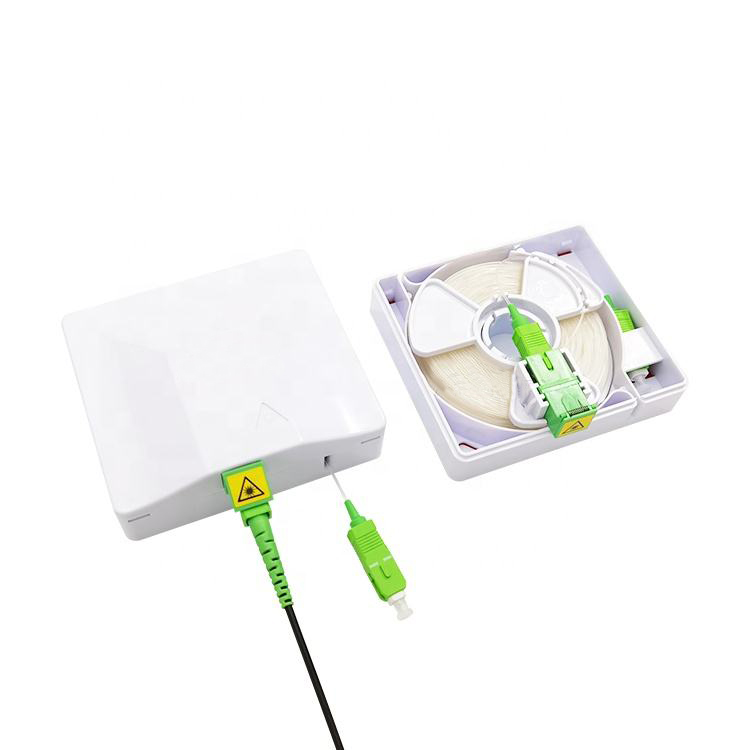

The optical rosette box can fully load 1pc SC/UPC adapter and 2pcs SC/UPC connectors with invisible fiber optic cable,900um, only need to insert into the outports interface, finish installation.
The internal is rotate design, easy to operate and repair, and internal part can be take off by hand, it is clip design.
The total box is enclosed before delivery, outports shutter adapter can prevent dust from entering the box. The top cover with a laser mark can silk print customer logo upon request.
The back is with 3M double layer adhesive tape, to paste on wall tightly, we can provide this parts before deliver, if need.
Customer can choose wall mount screws to fix the box on wall, it is ok.
