4 Ports PC 96 Fiber Optic Cable Splice Closure Pole Wall Mount Dome Mechanical
The GJSM3-JF Dome Fiber Optic Splice Closure is used in aerial, wall-mounting applications, for the straight-through and branching splice of the fiber cable. The closure has four round entrance ports. The shell of the product is made from MPP. The shell and the base are sealed by pressing the silicone rubber with clamp allocated. The entry ports are sealed by thread plastic device. The closures can be opened again after be sealed, reused again without changing the sealing material.
96 Fiber Splice Closure Specification
| Item | GJSM3-JF |
| Dimension (D*H) mm | Φ190×410 |
| Weight(Kg) | 2.3 |
| Diameter of Cable(mm) | Φ7~Φ22 |
| No. of Cable Inlet/Outlet | four |
| Number of Fibers per Tray | 24(single core) |
| Max. Number of Trays | 4 |
| Max. Number of Fibers | 96(single core) |
| Sealing of Inlet/Outlet ports | Thread plastic device |
| Sealing of Shells | Silicon rubber |
----------------------------------------------------------------------------------------------------------------------------------------------------
-------------------------------------------------------------------------------------------------------------------------------------------------
----------------------------------------------------------------------------------------------------------------------------------------------------
Fiber optical 96 Cores Splice Closure Kit Contents
| Item | Type | Quantity |
| Fiber Optic Splice Sleeve | | Allocated by the number of fibers |
| Buffer Tube | PVC | Allocated by the trays(According to clients need) |
| Nylon Ties | | 4×trays |
| Marking Note | | 4×cores of fiber cable |
| Hanging Tools | | 1 pair |
| Plastic hoop | | 1 piece |
| Plastic wrench | | 2 small and 1 big |
| Seal ring | | 1 piece |
| Sand paper | | 1 piece |
| aluminum paper | | 1 piece |

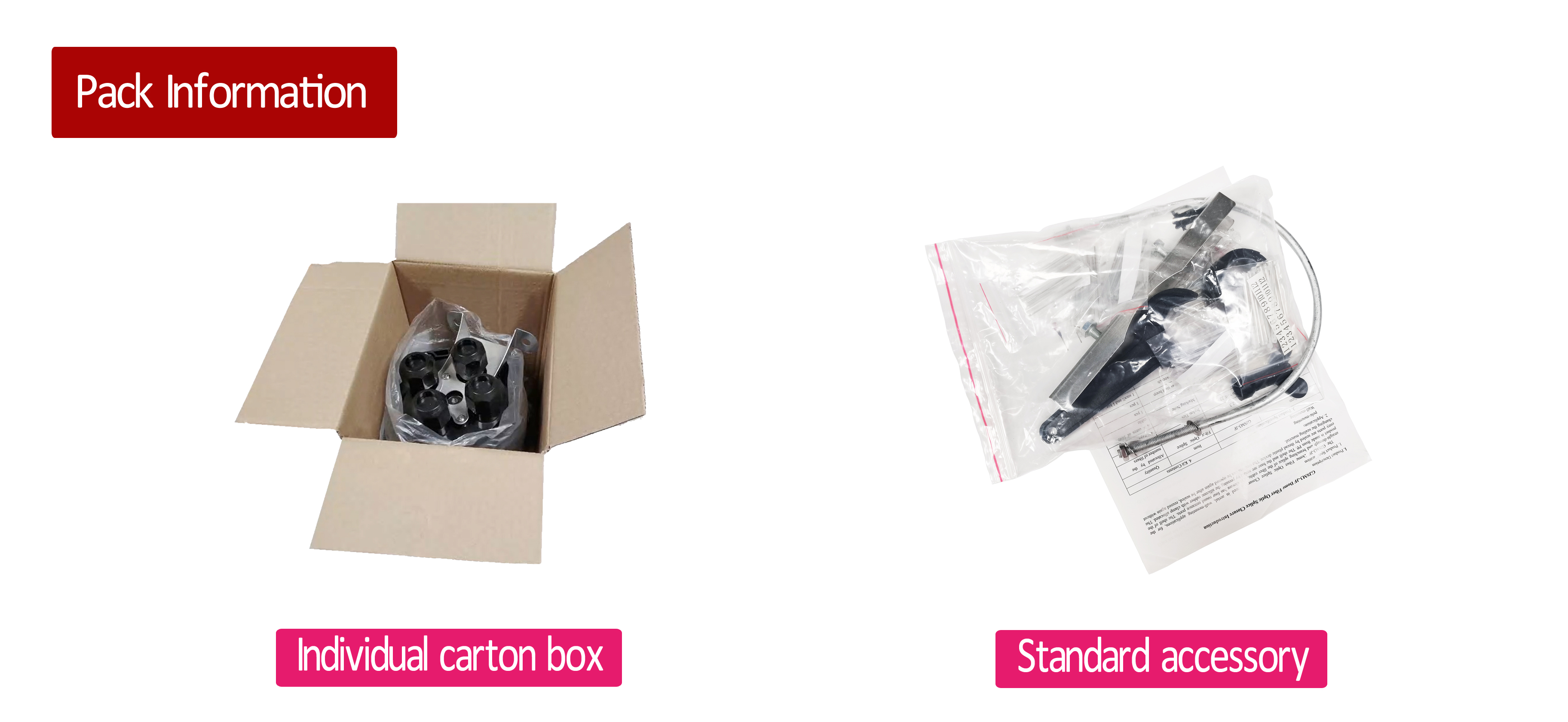

Fiber closure box standard accessory:
wall mount kits, user manual, wrench *2 sets, heat shrink protection tubes, number mark, insolation tape, cable gronments seals, etc.
optical fiber joint box tools Required
- Blast Burner or Welding Gun
- Saw
- Minus Screwdriver
- Cross-shaped Screwdriver
- Pliers
- Scrubber
Transportation and Storage
(1) The package of this product adapts to any transportation ways. Avoid collision, drop, direct shower of rain & snow and insolation.
(2) Keep the product in a draughty and dry store, without corrosive gas in.
(3) Storage Temperature Range:-40℃ ~ +60℃
