Brand Name : YINGDA
Model Number : FDB0208D
Certification : ISO
Place of Origin : china
MOQ : 100 PCS
Price : 1.0USD-18.6USD
Payment Terms : L/C, T/T, Western Union, MoneyGram
Supply Ability : 10000 pcs per month
Delivery Time : 5-8 working days
Packaging Details : 1pc/box, 10pcs per carton box
Material : ABS+PC
Color : White
Capacity : FTTH Drop Cable 8 Cores
Cable Port : 3 cables gland
Dimension : 240*195*66 mm
Adapter : 8pcs SC SX/ LC DX
Installation : Wall mount, Pole Mount
Usage : Indoor or Outdoor
PLC Splitter : 1x2, 1x4, 1x8 Mini Splitter
Sample : Support
FDB0208D Fiber Optic Distribution Box
FDB0208D is a new generation product for fiber to the home. It is designed to connect feeder cable or distribution cable to subscriber’s drop cable with PLC splitter in FTTX network.
There are 3pcs cable glands for drop cable.
there is a splice tray:
one side is for fusion, max. splice 8fibers in total, and 2 slots for plc splitter steel tube.
the other side is for distribution with 8pcs SC/APC adapters, and ftth drop cable connection on site work.

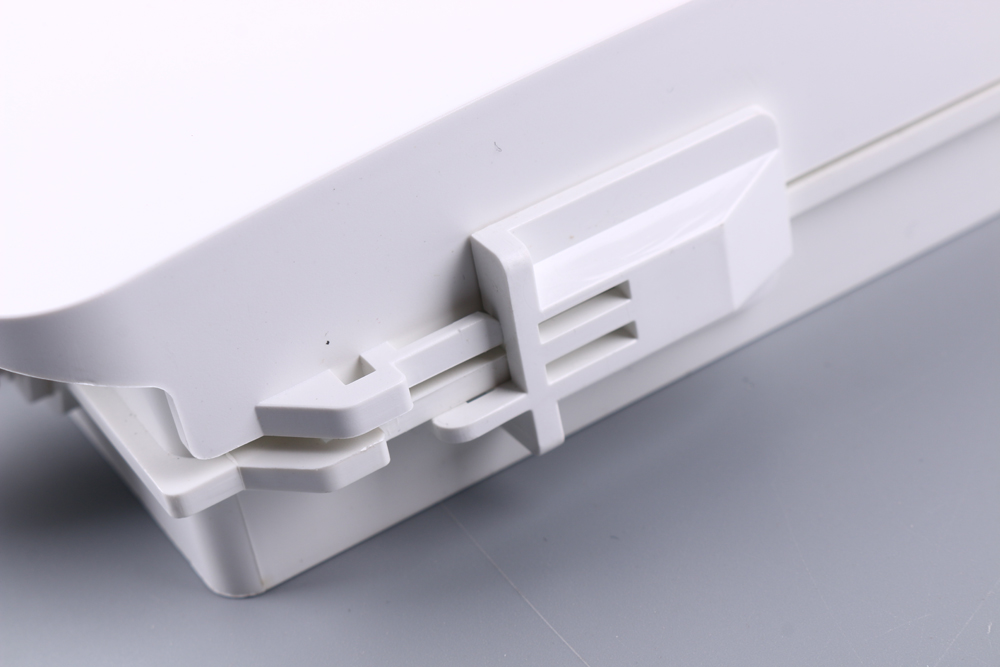

lock system: 2 buckles, anti-thief, and waterproof, special design., back with wall mounting holes with screws and pole mount with clamps.
.
Big space for splicing,can be put 8pcs fiber Splicing Sleeve.
Model | FDB0208D (GP62DW-I) |
Dimension (W*D*H) | 210*175*50mm |
Max.Capacity | 8 core(single fiber) |
Cable ports | 3 cable glands |
Cable diameter | In:Φ7-12m; out:2*3mm |
Splitter quantity | 1x8 steel tube |
Adapter quantity | 8SC |
Color | White |
![]() |
FDB0208D Fiber Optic Splitter Box with 8SC Adapter Bracket and 8 SC/APC Adapters for Distribution Images |
